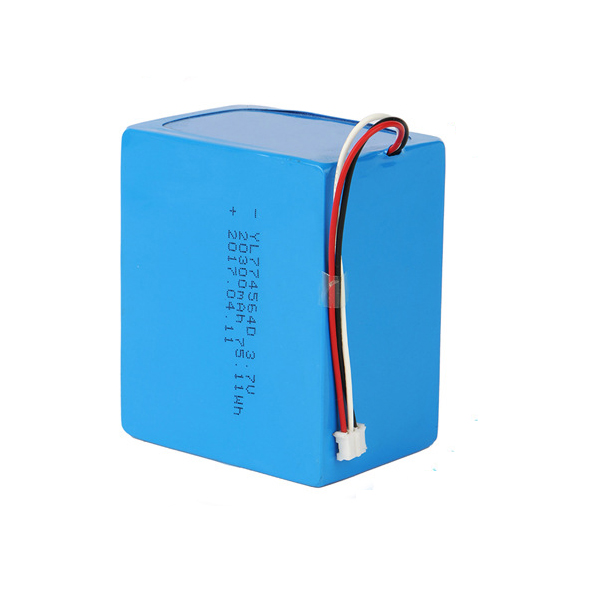

太阳能电池20A40A60A
- 太阳能专用电池
- 咨询热线：18929185825
-
国家高新企业太阳能储能供电生产厂家
提供不同太阳能储能供电方案
全国咨询热线 18929185825
| 项目Items | 标准Standards | 备注Remarks | ||
| 1. 容量Capacity | 标称容量 Typical | 20Ah | CC/CV, 0.2C5mA Discharge | |
| 最小容量 Minimum | 19Ah | CC/CV, 0.5C5mA Discharge | ||
| 2. 标称电压 Nominal Voltage | 11.1V | |||
| 3. 内阻 Internal Resistance | ≤300mΩ | 交流AC, 1 kHz, Full Charged | ||
| 4. 电池组重量尺寸 Battery pack Weight size | ≤1500g | 130mm*95mm*70mm | ||
| 5. 充电方法 | 标准充电 | 2A | 10小时(CC/CV, 参考4.2) | |
| Battery Charge | Standard Charge | 10hrs(CC/CV, Refer to 4.2) | ||
| 快速充电 | 4A | 5小时(CC/CV，参考4.3) | ||
| Quick Charge | 5hrs(CC/CV, Refer to 4.3) | |||
| 6. 恒流充电终止电压 | 12.6±0.05V | / | ||
| CC Charge Cut-off Voltage | ||||
| 7. 放电 | 标准放电 | 2A,11.1V | 1C恒流放电 | |
| Discharge | Standard Discharge | Discharge@1C5A | ||
| 最大放电 | 4A, 11.1V | 2C恒流放电 CC | ||
| Maximum Discharge | Discharge@3C5A | |||
| 8. 脉冲放电30秒 | 10A | @ 25℃ | ||
| Pulse Discharging 30 seconds | ||||
| 9. 循环寿命 Cycle Life | 大于500次 | 具体见5.4节 | ||
| > 500times | Refer to 5.4 | |||
| 10.使用温度范围Operating Temperature Range | 充电温度范围 | 0℃～45℃ | 环境温度(电池表面温度必须小于65℃) | |
| Charging Temperature | Environment temperature(battery surface temperature must be less than 65℃) | |||
| 放电温度范围 | -20℃～60℃ | 环境温度(电池表面温度不超过80℃) | ||
| Discharging Temperature | Environment temperature(battery surface temperature not to exceed 80℃) | |||
| 存储温度范围 | -20℃～40℃ | 建议长期储存的温度范围是0~35℃ | ||
| Storage Temperature | recommended long-term storage | |||
| temperature is 0~35℃ | ||||
| 11.存储寿命Storage Life | 一年 | 装运的常用值Nomal shippment | ||
| One year | ||||
| 12.外观Appearance | 无变形、污迹、电解液泄露等 | |||
| No deformations, stains, or electrolyte leakages | ||||
| 项目Items | 标准Standards | 备注Remarks | |
| 1. 容量Capacity | 标称容量 Typical | 40Ah | CC/CV, 0.2C5mA Discharge |
| 最小容量 Minimum | 38Ah | CC/CV, 0.5C5mA Discharge | |
| 2. 标称电压 Nominal Voltage | 11.1V | ||
| 3. 内阻 Internal Resistance | ≤300mΩ | 交流AC, 1 kHz, Full Charged | |
| 4. . 电池组重量尺寸 Battery pack Weight size | ≤3000g | 200mm*130mm*70mm | |
| 5. 充电方法 | 标准充电 | 2A | 10小时(CC/CV, 参考4.2) |
| Battery Charge | Standard Charge | 10hrs(CC/CV, Refer to 4.2) | |
| 快速充电 | 4A | 5小时(CC/CV，参考4.3) | |
| Quick Charge | 5hrs(CC/CV, Refer to 4.3) | ||
| 6. 恒流充电终止电压 | 12.6±0.05V | / | |
| CC Charge Cut-off Voltage | |||
| 7. 放电 | 标准放电 | 2A,11.1V | 1C恒流放电 |
| Discharge | Standard Discharge | Discharge@1C5A | |
| 最大放电 | 4A, 11.1V | 2C恒流放电 CC | |
| Maximum Discharge | Discharge@3C5A | ||
| 8. 脉冲放电30秒 | 10A | @ 25℃ | |
| Pulse Discharging 30 seconds | |||
| 9. 循环寿命 Cycle Life | 大于500次 | 具体见5.4节 | |
| > 500times | Refer to 5.4 | ||
| 10.使用温度范围Operating Temperature Range | 充电温度范围 | 0℃～45℃ | 环境温度(电池表面温度必须小于65℃) |
| Charging Temperature | Environment temperature(battery surface temperature must be less than 65℃) | ||
| 放电温度范围 | -20℃～60℃ | 环境温度(电池表面温度不超过80℃) | |
| Discharging Temperature | Environment temperature(battery surface temperature not to exceed 80℃) | ||
| 存储温度范围 | -20℃～40℃ | 建议长期储存的温度范围是0~35℃ | |
| Storage Temperature | recommended long-term storage | ||
| temperature is 0~35℃ | |||
| 11.存储寿命Storage Life | 一年 | 装运的常用值Nomal shippment | |
| One year | |||
| 12.外观Appearance | 无变形、污迹、电解液泄露等 | ||
| No deformations, stains, or electrolyte leakages | |||
| 项目Items | 标准Standards | 备注Remarks | |
| 1. 容量Capacity | 标称容量 Typical | 60Ah | CC/CV, 0.2C5mA Discharge |
| 最小容量 Minimum | 56Ah | CC/CV, 0.5C5mA Discharge | |
| 2. 标称电压 Nominal Voltage | 11.1V | ||
| 3. 内阻 Internal Resistance | ≤300mΩ | 交流AC, 1 kHz, Full Charged | |
| 4. . 电池组重量尺寸 Battery pack Weight size | ≤4500g | 200mm*150mm*70mm | |
| 5. 充电方法 | 标准充电 | 2A | 10小时(CC/CV, 参考4.2) |
| Battery Charge | Standard Charge | 10hrs(CC/CV, Refer to 4.2) | |
| 快速充电 | 4A | 5小时(CC/CV，参考4.3) | |
| Quick Charge | 5hrs(CC/CV, Refer to 4.3) | ||
| 6. 恒流充电终止电压 | 12.6±0.05V | / | |
| CC Charge Cut-off Voltage | |||
| 7. 放电 | 标准放电 | 2A,11.1V | 1C恒流放电 |
| Discharge | Standard Discharge | Discharge@1C5A | |
| 最大放电 | 4A, 11.1V | 2C恒流放电 CC | |
| Maximum Discharge | Discharge@3C5A | ||
| 8. 脉冲放电30秒 | 10A | @ 25℃ | |
| Pulse Discharging 30 seconds | |||
| 9. 循环寿命 Cycle Life | 大于500次 | 具体见5.4节 | |
| > 500times | Refer to 5.4 | ||
| 10.使用温度范围Operating Temperature Range | 充电温度范围 | 0℃～45℃ | 环境温度(电池表面温度必须小于65℃) |
| Charging Temperature | Environment temperature(battery surface temperature must be less than 65℃) | ||
| 放电温度范围 | -20℃～60℃ | 环境温度(电池表面温度不超过80℃) | |
| Discharging Temperature | Environment temperature(battery surface temperature not to exceed 80℃) | ||
| 存储温度范围 | -20℃～40℃ | 建议长期储存的温度范围是0~35℃ | |
| Storage Temperature | recommended long-term storage | ||
| temperature is 0~35℃ | |||
| 11.存储寿命Storage Life | 一年 | 装运的常用值Nomal shippment | |
| One year | |||
| 12.外观Appearance | 无变形、污迹、电解液泄露等 | ||
| No deformations, stains, or electrolyte leakages | |||
