MODEL NO.：HC861FDG-4G
2.0MP 4G PTZ DOME CAMERA
Key Feature:
★1/2.9 " Progressive Scan CMOS
★ 2.0 Mega Pixel（1920X1080P）
★ Vari-focal lens: 4X Optical zoom(2.8-12mm)
★ Optional (32G / 64G/128G )
★ External 4G card, FDD:B1,B3,B7,B8,B20 TD:B38,B40,B41
3G WCDMA:B1/B8 GSM:900/1800
★ True Day/Night,3D DNR, Digital WDR
★ SIZE:185×195×250MM 8PCS/CARTON
★ Weight: 2.2Kg
Remark: Audio In/Out can be customized.

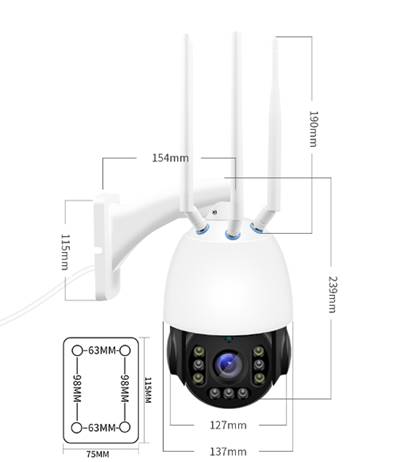

SECTION SIZE OF SPEED DOME
Wall mounting:
Ceiling mounting.
Specification:
Camera | Image Sensor | Hi3516C, 1/2.9 " Progressive Scan CMOS |
Effective Pixels | 1920(H)×1080P(V) |
Pixel | 2.0MP |
Signal System | PAL/NTSC |
Video Format | 25fps(50HZ), 30fps(60HZ) |
Min Illumination | Color 0.01Lux @ F1.2, black and white 0.001 Lux@F1.2 |
White Balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
AGC | Auto/Manual |
S/N Ration | 》52db |
BLC | ON/OFF |
HLC | Support |
3D DNR | Support |
Smart defog | Support |
DWDR | Support |
Shutter Time | 1 ~1/1000s |
Day/Night | ICR |
Frame Rate | 25fps |
Privacy Masking | Support 4 rectangle areas |
Bit Rate | 307Kbps～8Mbps |
Auto Focus | Auto/Semi-automatic/Manual |
Optical Zoom | 4X |
Digital Zoom | 3X |
LENS | Focal Length | 2.8~12mm,4X |
Zoom Speed | Approx 3s |
Angle of View | 91°-28° |
Minimum Working Distance | 10-600mm |
Aperture Range | Fix |
Pan&Tilt | Pan Range | 0°～355°； |
Pan Speed | Pan Manual Speed: 0.1° ~40°/s, Pan Preset Speed: 40°/s |
Tilt Range | 0~90° |
Tilt Speed | Tilt Manual Speed: 0.1° ~40°/s, Tilt Preset Speed: 40°/s |
Number of preset | 128 |
Patrol | 8 patrols,8 presets per patrol |
Power loss recovery | Support |
Park Action | Preset/Patrol/Pattern/Pan Scan |
Input& Output | Audio Input | Optional(Not Build-In) |
Audio Output | Optional(Not Build-In) |
Infrared | Infrared Lamp | 6pcs Ф14 Lattice Lamps |
IR distance | 40m～60m |
Wavelength | 850nm |
Signal& Storage | 4G | FDD:B1，B3，B7，B8，B20 TD:B38，B40，B41 3G WCDMA:B1/B8 GSM:900/1800 |
Storage | Optional (32G / 64G ) |
Max. Image Resolution | 1920*1080 |
Frame Rate | 50Hz: 25 fps (1920×1080), 25 fps (1280×960) , 25 fps (1280×720)
60Hz: 30 fps (1920×1080), 30 fps (1280×960) , 30 fps (1280×720) |
Main Stream | 50Hz: 25 fps (1920×1080), 25 fps (1280×960) , 25 fps (1280×720)
60Hz: 30 fps (1920×1080), 30 fps (1280×960) , 30 fps (1280×720) |
Sub Stream | 720P（640x480&640x352）,720P（320x240&320x176）,D1(704*576),CIF(352*288) |
JPG rate | Q720P（640x352）、QQ720P(320x176) |
Image Compression | H.264/MJPEG/32Kbps-6144bps |
Audio Compression | G.711/G.722/G.726/MP2L2(Optional) |
Protocol | TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP |
No. of Stimultaneous Users: | Up to 12 users，Three level authority：
Administrator/User/Visitor |
Dual Stream | Support |
ONVIF | 2.0 |
Security Measures | User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering |
Transmission | Internal Cloudsee Protocol |
Browser | IE8+,Chrome18+,Firefox5.0+,Safari5.02+ browsers |
General | Menu Language | English &Chinese |
Power Supply | DC 12V 2A |
Power consumption | Day:＜12W Night:＜24W |
Temperature | -20℃～+60℃(-4°F ~ 140°F) |
Working Humidity | <95% |
Protection Level | IP66 Standard(outdoor dome) |
Material | Aluminum |
Dimensions | Φ137×228mm (Ceiling)
Φ137×239mm (Wall) |
G. Weight(kg) | 2.2kg |
