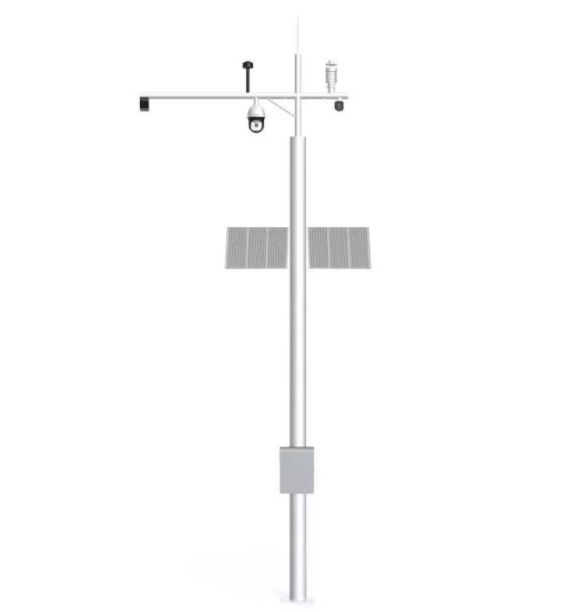

太阳能监控双光源智能跟踪球机产品规格书

订货型号：

搭配方案:

跟踪球工作原理:

基于人形识别推送坐标给球机,球机收到坐标后按照坐标的位置转动.机芯全面接管球机来实现跟踪功能.

整个跟踪过程球机转动平滑,图像流畅不抖动.

产品主要功能:

云台部分（Speed Dome）:

1,支持水平360度无极限旋转,垂直90度旋转.

support level 360 degrees without limit rotation, vertical 90 degree

2,内置高灵敏度麦克风,拾音范围100平方米.并支持喇叭输出

built-in high sensitivity microphone, pickup range of 100 square meters. And support speaker output

3,支持红外灯自动/手动控制,并支持红外灯亮度调节

support infrared light automatic / manual control, and support infrared light brightness adjustment

4,支持光敏电阻灵敏度调节.

support photosensitive resistance sensitivity adjustment.

5,支持水平360度扫描,并支持扫描速度调节

support level 360-degree scanning, and support scanning speed adjustment

6,支持256个预置位

support 256 presets

7,支持3组巡航,并支持巡航速度调节和巡航点停留时间调节.

support 3 groups of cruise, and support cruise speed adjustment and cruise point dwell time adjustment.

8,支持限位扫描，并且支持扫描速度调节。

support limit scan, and support scan speed adjustment.

9，支持一个看守位，并支持时间设置

support a Home position, and support time settings

10，支持空闲动作

support idle action

11，支持三种不同应用场景的聚焦模式。

support the focus mode of three different application scenarios.

12，支持温度控制模式（需要附加恒温装置）

support temperature control mode (requires additional thermostat)

13，支持双光源工作模式，物体移动时白光灯亮起，图像为彩色

Supports dual light source mode. White light is on when object moves, and image is color.

摄像机部分（18x zoom Camera）：

1，  支持18倍光学变焦，镜头焦距：5.3-96毫米

support 18x optical zoom, lens focal length: 5.3-96 mm

2，  采用SONY星光级CMOS芯片IMX307/335

HI3516EV300+IMX335 分率：支持5MP(2560*1920)，20帧率，4MP（2560x1440）25帧率

used SONY star-level CMOS chip IMX307/335

HI3516EV300+IMX335 Rate: Support 5MP (2560*1920), 20 frame rate, 4MP (2560x1440) 25 frame rate

3,支持H.264/265/265+的压缩算法。

support H.264/265/265+ compression algorithm.

4，支持多重网络协议TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP等。

support multiple network protocols TCP / IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, etc

5，支持P2P连接

support P2P connection

6，支持声音报警，并可以自定义报警声音

support for audible alarms, and can customize the alarm sound

7，支持P2P报警推送

support P2P alarm push

8，支持SD卡存储，最大支持128GB（仅适用于支持SD卡+WIFI版本的设备）

support SD card storage, maximum support 128GB (only for devices that support SD card + WIFI version)

9，支持SD卡主码流抓拍（仅适用于支持SD卡+WIFI版本的设备）

support SD card main stream capture (only for devices that support SD card + WIFI version)

10，支持图片FTP上传

support imges FTP upload

11，支持ONVIF协议

support ONVIF Protocol

12，支持RTSP推流

support RTSP push stream

13，支持人形识别，并支持人形识别报警联动录像，抓拍，FTP上传，声音报警，APP报警推送，报警录像。并支持4个人形识别区域（可用于区域入侵设置）

support humanoid recognition, and support humanoid recognition alarm linkage :video, capture, FTP upload, voice alarm, APP alarm push, alarm video. And support 4 personal shape recognition area (can be used for regional intrusion settings)

14，支持SMD(包含Smart PQ、Low Bitrate、人形检测）

support SMD (including Smart PQ, Low Bitrate, humanoid detection)

15，支持报警输入输出（可选）

support alarm input and output (optional)

16，支持DDNS动态域名解析

support DDNS dynamic domain name resolution

17，支持双向语言对讲

support two-way language intercom

技术参数:
