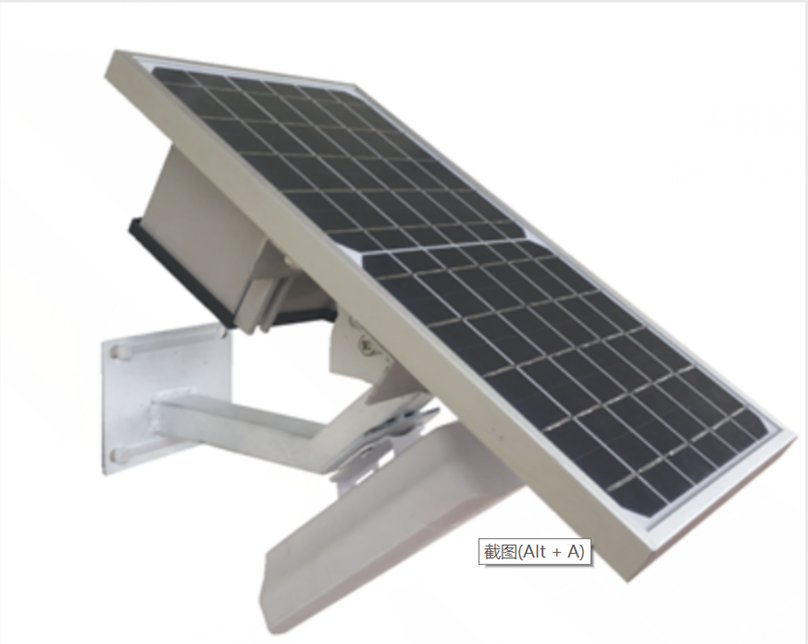

太阳能4G监控路由器太阳能CPE规格书
| 太阳能板电性能参数Electrical Specifications | |||
| 最大功率Maximum power(Pmax) | 10W | ||
| 公差Tolerance | ±5% | ||
| 最大功率点电压Maximum power voltage(V) | 6 | ||
| 最大功率点电流Maximum power current(A) | 1.67 | ||
| 开路电压Open circuit voltage(V) | 7.3 | ||
| 短路电流Short circuit current(A) | 1.79 | ||
| 最大系统电压Maximum system voltage(V) | 600 | ||
| 最大工作电流Serises fuse rating(A) | 5 | ||
| 使用温度Operating Temperature | -40℃～+85℃ | ||
| NOCT额定工作温度 | 48±2℃ | ||
| 储存温度Storage temperature | 室温 | ||
| 应用等级Application class | Class A | ||
| 最大机械载荷Maximum mechanical load | Wind：2400Pa Snow:5400Pa | ||
| 温度系数Temperature Characteristics | |||
| 电流温度系数Current temperature coefficient α(Isc) | 0.03%/℃ | ||
| 电压温度系数Voltage temperature coefficient β(Isc) | -0.32%/℃ | ||
| 功率温度系数Power temperature coefficient γ(Isc) | -0.42%/℃ | ||
| 机械参数Mechanical Characteristics | |||

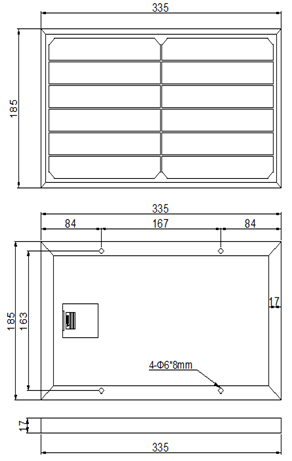

| 外形尺寸Dimensions(mm) | 335×185×17mm | ||
| 重量Weight(kg) | 0.8Kg | ||
| 电池片类型Solar cells | 单晶硅Mono-crystalline | ||
| 封装材料Encaosulant material | EVA | ||
| 面板材料Front sheet | 光伏玻璃PV-glass; | ||
| 边框Frame | 铝合金Aluminum frame | ||
| CPE参数 | |
| CPU | 高通MDM9207, CAT4, DL 150Mbps, UL 50Mbps |
| TDD-LTE | 3GPP,3GPP2 Release10，Category 4,up to 150M DL and 50Mbps UL |
| FDD-LTE | 3GPP,3GPP2 Release10，Category4,up to 150M DL and 50Mbps UL |
| DC-HSPA+ | 3GPP,3GPP2 Release8, up to 21Mbps ,category 24，5.76Mbps UL |
| HSPA+ | 3GPP,3GPP2 Release7, up to 14.4Mbps ,category 10，5.76Mbps UL |
| HSPA | 3GPP,3GPP2 Release6, up to 7.2Mbps DL,category 7,8，5.76Mbps UL |
| UMTS | 3GPP Release4, up to 384 Kbps DL and UL |
| EDGE | 3GPP Release4, Multislot class 12, up to 237 Kbps |
| GPRS | 3GPP Release4, Multislot class 10, up to 85.6Kbps |
| 网络频段制式 | |
| TDD-LTE | B38,B39,B40,B41 |
| FDD-LTE | B1,B3,B5 |
| UMTS | B1,B5 |
| GSM | NA |
| 接口参数 | |
| 指示灯 | WAN,LAN,LTE,Power |
| 按键 | Reset/Power |
| LAN口 | 2*RJ45 |
| 电源 | 12V/1.0A |
| POE供电 | 48V（可选） |
| 尺寸:171*90*41mm | |
| Ø 高通多模工业级芯片，支持全球网络TDD-LTE/FDD-LTE/UMTS/TD-SCDMA/EVDO等 |
| Ø WiFi MIMO 2*2,最高可达300Mbps |
| Ø LTE CAT4 MIMO 2*2,最高可达150Mbps |
| Ø 2 个RJ45 LAN（可选POE 48V供电模式） |
| Ø 支持32个WiFi用户. |
| Ø 户外防水IP66 |
